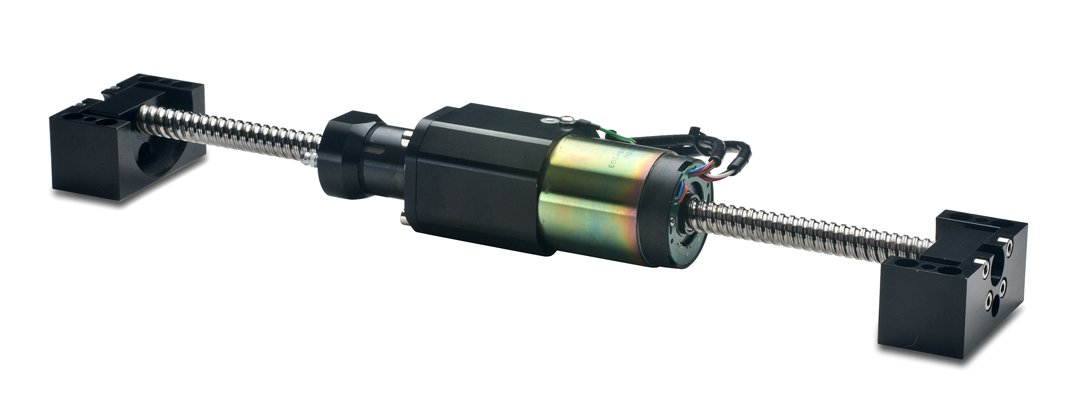

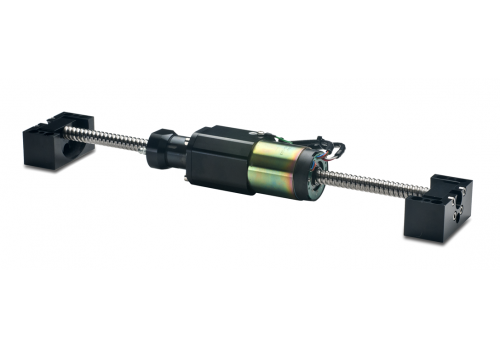

Click image to view ServoNut Power Module gallery

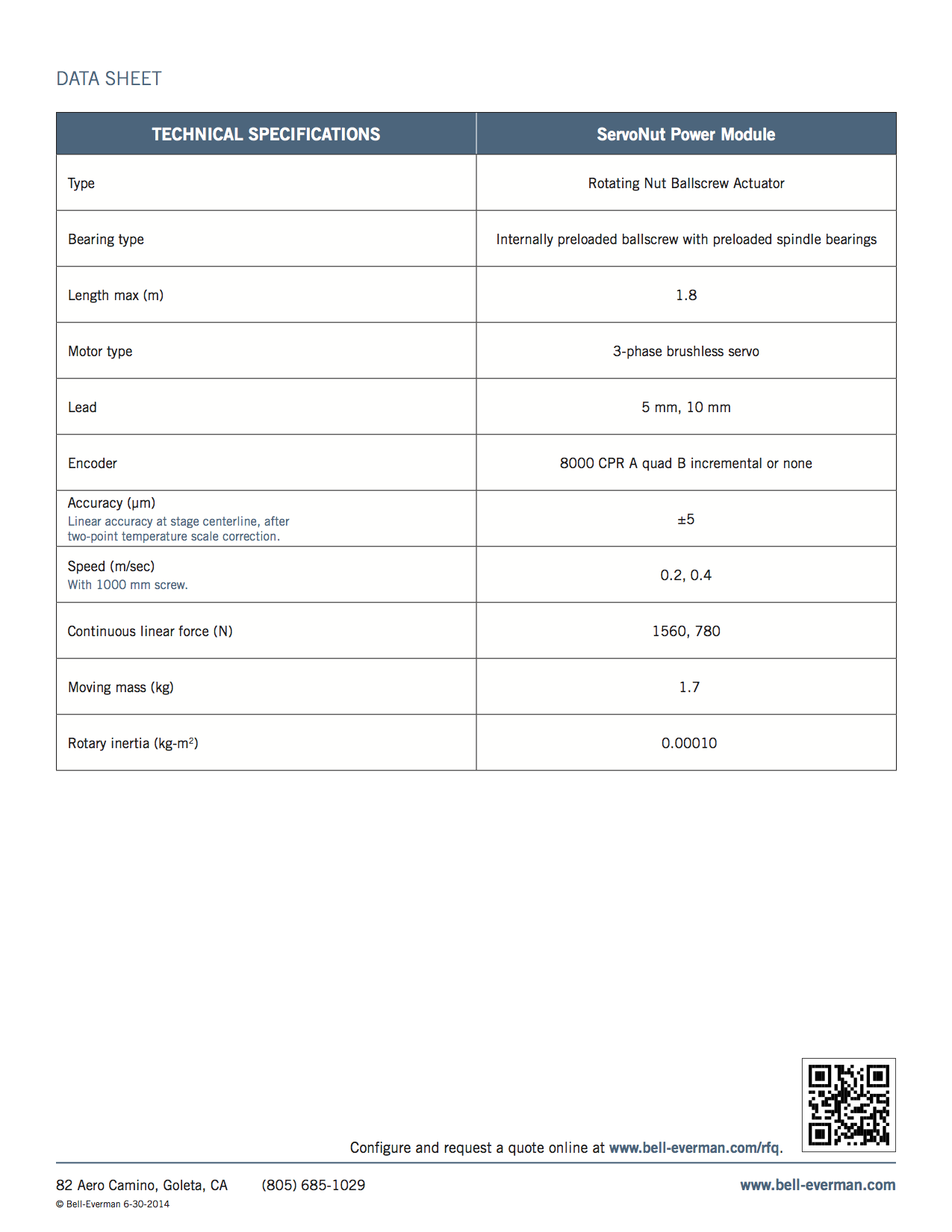

Click image to view property table with definitions





ServoNut Power Module

Zero backlash, driven-nut ball screw linear actuator

With its low-inertia, high-force driven nut design, ServoNut Power Module outperforms linear motors when it comes to load capacity, acceleration, speed, ease-of-installation and cost. ServoNut is also a more efficient alternative to conventional driven-screw ball screws.

  • Zero backlash.  ServoNut directly drives the nut along the screw with exact position feedback for backlash-free operation.
  • Standalone or Complete Actuator.  ServoNut Power Modules are available as a standalone drive element or as a complete precision linear actuator assembly with bearing carriage and linear or rotary encoder.
  • Inertia Matching Made Easy.  A wide range of direct-drive servo motors and screw leads allows for exact matching of your payload and motion requirements, eliminating the complications and inefficiencies of a driven-screw system’s belt passes. ServoNut inertia is equivalent to or less than that of a driven-screw stage.
  • High-Force Applications.  Load capacity exceeds 1,500N continuous force. With options for pneumatic or electric fail-safe brakes, ServoNut Power Module is ideal for high-force vertical axis applications.
  • Fast and Precise. ServoNut offers speeds in excess of 1 m/s and accelerations over 4 g. Bi-directional repeatability is ± 1 encoder count.
  • Built To Last.  ServoNut Power Module features lubed-for-life rotary bearings and an anodized aluminum and stainless steel construction.

Download ServoNut Power Module DatasheetDownload
ServoNut
Power Module
Datasheet

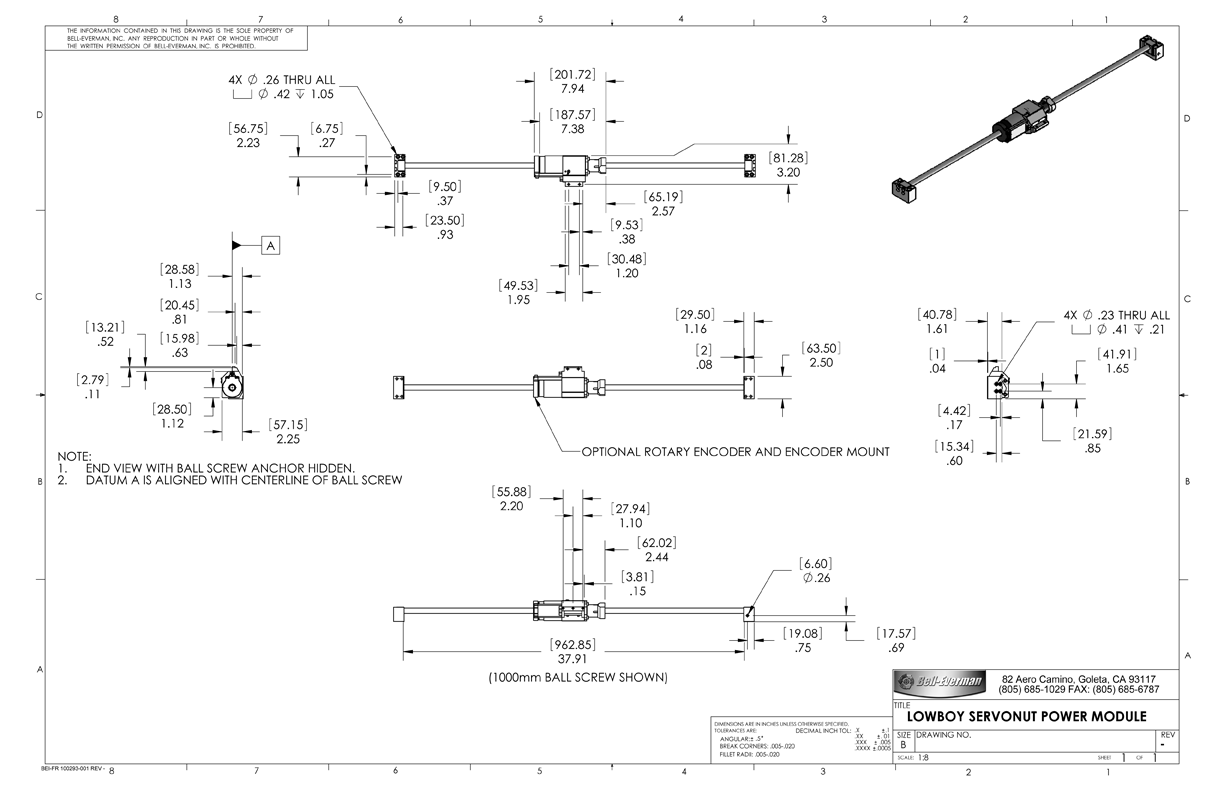

Download ServoNut Power Module DrawingsDownload
ServoNut
Power Module
Drawing
