Custom Rotary Positioning Stages

A guide to ServoBelt Rotary and Direct Drive Theta modification

While off-the-shelf rotary stages will do the job in most cases, sometimes your application requirements call for a customized stage. It may be something as simple as a special bolt hole pattern on the top of the stage. Or you may need a way to secure a workpiece in the stage center opening. Or you may need to squeeze a rotary positioning device into a tight space.

Whatever your requirements, we can help. We’ve introduced accessories and modular design features that make it easy to customize our standard Servo-Belt Rotary (SBR) and Direct Drive Theta (DDT) rotary stages. And in cases where our standard rotary platforms can’t be modified to fit your requirements, we can often design and build one-of-a-kind rotary motion systems to your specifications.

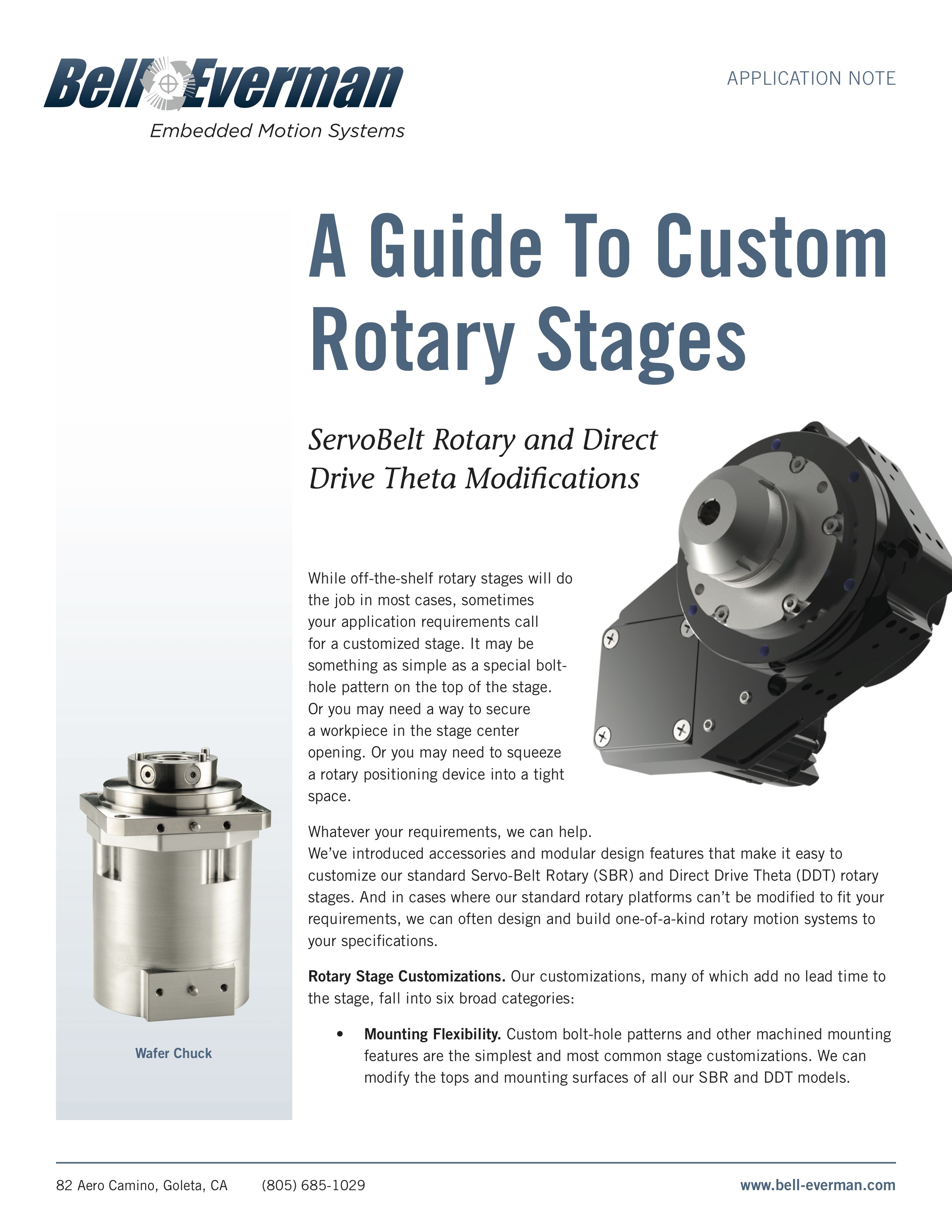

Download our Guide To Custom Rotary Stages to learn more or visit ServoBelt Rotary or Direct Drive Theta to configure and get pricing for standard rotary stages.


Examples



Three Jaw Chuck
for Workholding Solutions

Harsh Environment

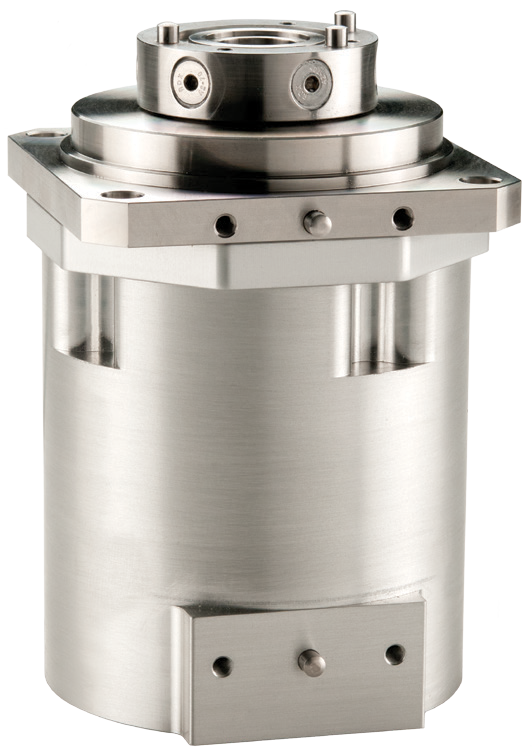

Wafer Chuck Rotator

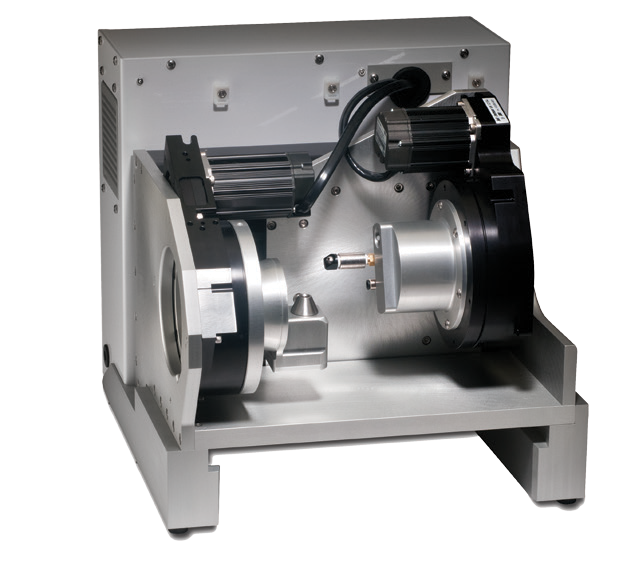

CNC Assembly
for Dental Mill


For additional examples on rotary stage customization, download our Guide to Custom Rotary Stages now.

Configure and Buy ServoBelt Rotary Stages Online

Configure a stage that qualifies for Bell-Everman's Click to Buy program. Click to Buy orders are fulfilled and shipped within 3 business days. All other configurations are subject to 1-8 week production turnaround.

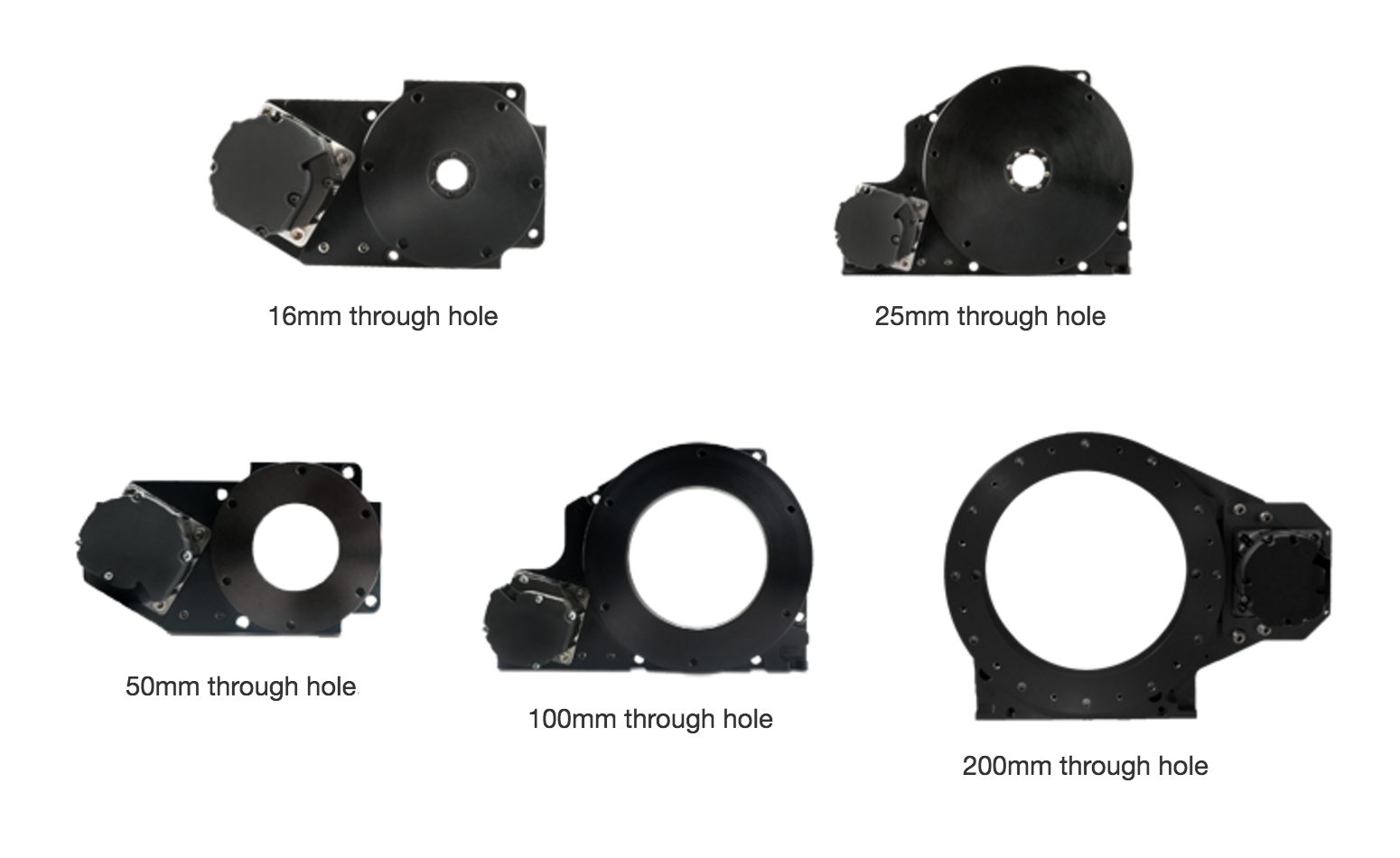

Click To Buy Models Available in Five Different Through Hole Sizes

ServoBelt Rotary is a series of compact, high-torque rotary stages that offer through hole size and speed comparable to direct-drive rotary tables costing thousands more.

Get Pricing Now →
